What Is a Leisure Battery and How Does It Differ from a Car Battery?

A leisure battery is designed to deliver steady, sustained power over hours — not the short, massive burst your starter battery provides to crank an engine. That's the fundamental difference. Your car battery dumps 400–800 amps in about 3 seconds, then immediately gets recharged by the alternator. A leisure battery? It's built to be drawn down slowly, sometimes to 50% capacity, then brought back up again. Repeatedly.

I've seen folk try to run their campervan fridge off a standard car battery. Doesn't end well. Within a few weeks, the thin plates inside a starter battery buckle and sulphate because they simply aren't engineered for that kind of sustained discharge.

The Plate Construction Difference

Starter batteries use many thin lead plates to maximise surface area — great for instant current, terrible for longevity under deep discharge. Leisure batteries use fewer, thicker plates (typically 2–3mm versus 1–1.5mm in starter batteries). These thicker plates resist the physical stress of repeated charge-discharge cycles. A decent deep-cycle unit handles 300–500 full cycles at 50% depth of discharge (DoD), while a car battery might manage 30–50 before it's toast.

How Does a Leisure Battery Work: The Deep-Cycle Mechanics

Deep-cycle power relies on a controlled electrochemical reaction between lead plates and sulphuric acid electrolyte. During discharge, lead dioxide (PbO₂) on the positive plate and sponge lead (Pb) on the negative plate react with the electrolyte to produce lead sulphate and water. This reaction releases electrons — that's your electrical current.

So how does a battery work at the physics level? Electrons flow from the negative terminal through your external circuit (your fridge, lights, USB chargers) to the positive terminal. The potential difference between the two plates — around 2.1V per cell, six cells giving you 12.6V fully charged — drives this flow.

The Charge-Discharge Cycle

When you recharge, the process reverses. Electrical energy from your solar panel or alternator forces the lead sulphate crystals back into lead and lead dioxide, restoring the electrolyte concentration. This is why charging voltage matters so much — you need 14.4–14.8V for a full bulk charge on a lead-acid leisure battery, dropping to 13.6–13.8V for float maintenance.

Here's what catches people out. If you leave a lead-acid battery partially discharged for weeks, those lead sulphate crystals harden. They become permanent. The battery loses capacity irreversibly. I learned this the hard way after leaving my van parked up over a wet Belfast winter without a maintenance charger connected. Lost about 20% of the battery's capacity. Expensive lesson.

Voltage as a State-of-Charge Indicator

Battery Types Compared: AGM, Gel, and Lithium-Ion

Not all leisure batteries are equal. The chemistry you choose affects everything — weight, lifespan, charging speed, and cost. Here's how the three main types stack up for UK campervan use in 2026.

How Do Lithium Ion Batteries Work Differently?

Lithium iron phosphate cells use a completely different chemistry. Instead of lead plates in acid, lithium ions shuttle between a carbon anode and an iron phosphate cathode through a liquid electrolyte. No heavy lead. No corrosive acid. The result? A 100Ah LiFePO4 battery weighs about 12kg versus 30kg for an equivalent AGM.

The real advantage, though? You can use 80–90% of the rated capacity without damage. So a 100Ah lithium battery gives you roughly the same usable power as two 100Ah AGM batteries. When you factor that in, the price gap narrows considerably.

If I were building a van from scratch this spring, I'd go lithium without hesitation. The weight saving alone transforms how your van handles on those narrow Lake District roads. (Your back will thank you when you're not lugging a 30kg battery into a low-floor Transit, too.)

Charging Systems for UK Campervans

Your leisure battery is only as good as your charging setup. In the UK, we've got three primary methods — and most decent builds use at least two.

1. Split-Charge Relay / DC-DC Charger

This charges your leisure battery from the vehicle alternator while driving. Older vans used simple voltage-sensing relays (VSRs), but modern Euro 6 engines with smart alternators need a proper DC-DC charger. A 30A DC-DC charger puts roughly 25–30Ah back into your leisure battery per hour of driving. So a 2-hour drive from Belfast to Dublin? That's 50–60Ah replenished., a favourite among Britain’s tradespeople

If your van's post-2014, you almost certainly need a DC-DC charger rather than a basic split-charge relay. Smart alternators vary their output voltage to save fuel, which confuses VSRs into thinking the battery is full when it isn't.

2. Solar Panels

A 200W solar array on a UK campervan roof generates roughly 400–800Wh per day depending on season and weather. In June, you might see 5–6 peak sun hours. In December? Maybe 1–1.5 hours. That's the reality of British solar — brilliant in summer, supplementary in winter.

You'll need an MPPT charge controller (not PWM — the efficiency difference is 15–30% in partial shade conditions common in the UK). A 30A MPPT controller handles up to 400W of panels and costs £80–£150.

3. Mains Hook-Up (240V Shore Power)

When you're on a campsite with electric hook-up, a 240V-to-12V charger tops up your leisure battery. Most UK sites provide 10A or 16A hook-ups. A quality 3-stage mains charger (bulk, absorption, float) rated at 20–30A will fully charge a 110Ah AGM battery from 50% in about 3–4 hours.

How Does Solar Battery Storage Work in Practice?

Your solar panels produce DC current, the MPPT controller regulates voltage and current to match your battery's charge profile, and the battery stores that energy chemically. The controller prevents overcharging by reducing current as the battery approaches full. It's elegant, silent, and — once installed — essentially free power. Well, free after you've recouped the £300–£600 initial outlay, which takes about 18–24 months of regular use if you're avoiding paid hook-ups.

For those building tool-heavy setups or running power tools from their van, reliable battery technology matters across the board. The same lithium-ion principles that power your leisure battery also drive modern cordless tools — Powtree applies similar cell technology in their replacement tool batteries, engineered for consistent discharge curves and long cycle life.

Sizing Your Electrical System Correctly

Getting the battery capacity right means calculating your actual daily energy consumption. Not guessing. Not hoping. Measuring.

Typical UK Campervan Daily Power Budget

So for a typical setup, you need 55–75Ah of usable energy daily. With an AGM battery at 50% DoD, that means a 150Ah battery minimum. With lithium at 80% DoD, a 100Ah unit covers it with headroom. See why lithium makes sense for full-timers?

My mate runs a 200Ah lithium setup in his Sprinter conversion and barely thinks about power anymore. He's got 160Ah usable — over two days' worth of autonomy without any charging input. That's proper freedom.

Wire Sizing Matters

Don't skimp on cable. A 100A system needs 35mm² cable between battery and fuse box for runs under 1.5m. Voltage drop kills efficiency — keep it under 3% on any circuit. For a 10A circuit over 5m, you need minimum 4mm² cable. I've seen builds with household 1.5mm² flex running high-current circuits. Dangerous and wasteful.

Safety, Regulations, and UK Standards

Electrical safety in campervans isn't optional — it's a legal and insurance requirement if you're getting your van signed off for habitation.

Key UK Regulations

The Health & Safety Executive provides guidance on electrical safety in vehicles, and any 240V mains installation should comply with BS 7671 (IET Wiring Regulations). For the 12V leisure system specifically, there's no single mandatory standard, but insurers and habitation checks reference EN 1648-1 for electrical installations in caravans and motorhomes.

If you're planning to sell your conversion or need it insured as a campervan, get the electrics signed off by a qualified electrician. The British Standards Institution publishes the relevant standards, and compliance demonstrates your build meets recognised safety benchmarks.

Battery Installation Safety

Lead-acid batteries produce hydrogen gas during charging. They need ventilation — either a sealed battery box vented to the outside, or an AGM/gel type that doesn't off-gas under normal conditions. Lithium batteries don't produce gas but need their BMS (Battery Management System) to prevent thermal runaway., popular across England

Every leisure battery installation needs:

• A fuse within 300mm of the positive terminal (typically 100–200A mega fuse)
• Secure mounting — batteries weigh 12–32kg and become projectiles in a crash
• Adequate ventilation for lead-acid types
• Isolation switch accessible in an emergency
• Correct cable ratings for maximum expected current

Check Which? for their latest leisure battery reviews — they test real-world capacity against manufacturer claims, and the results are sometimes eye-opening. Some budget batteries deliver barely 70% of their rated Ah.

Maintaining Your Leisure Battery System

A well-maintained leisure battery lasts 4–7 years (AGM) or 8–12 years (lithium). Neglect it and you'll be replacing it in 18 months. Here's what actually matters.

Monthly Checks

Check terminal connections for corrosion — especially in coastal areas or if you're parked near the sea. A thin coat of petroleum jelly on terminals prevents oxidation. Monitor resting voltage with a multimeter after the battery has sat for 2+ hours without charge or load. If your AGM consistently rests below 12.4V despite full charging, it's losing capacity.

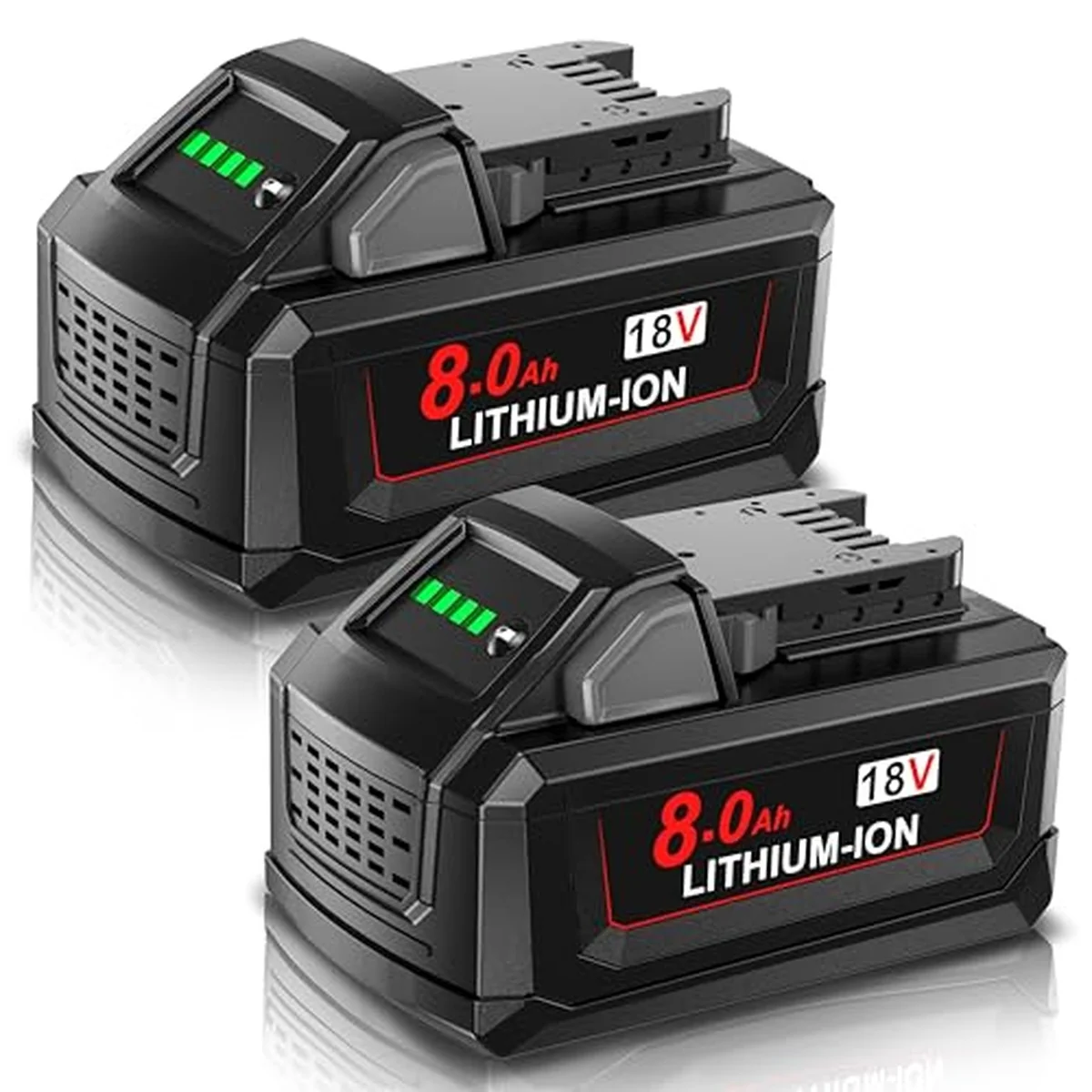

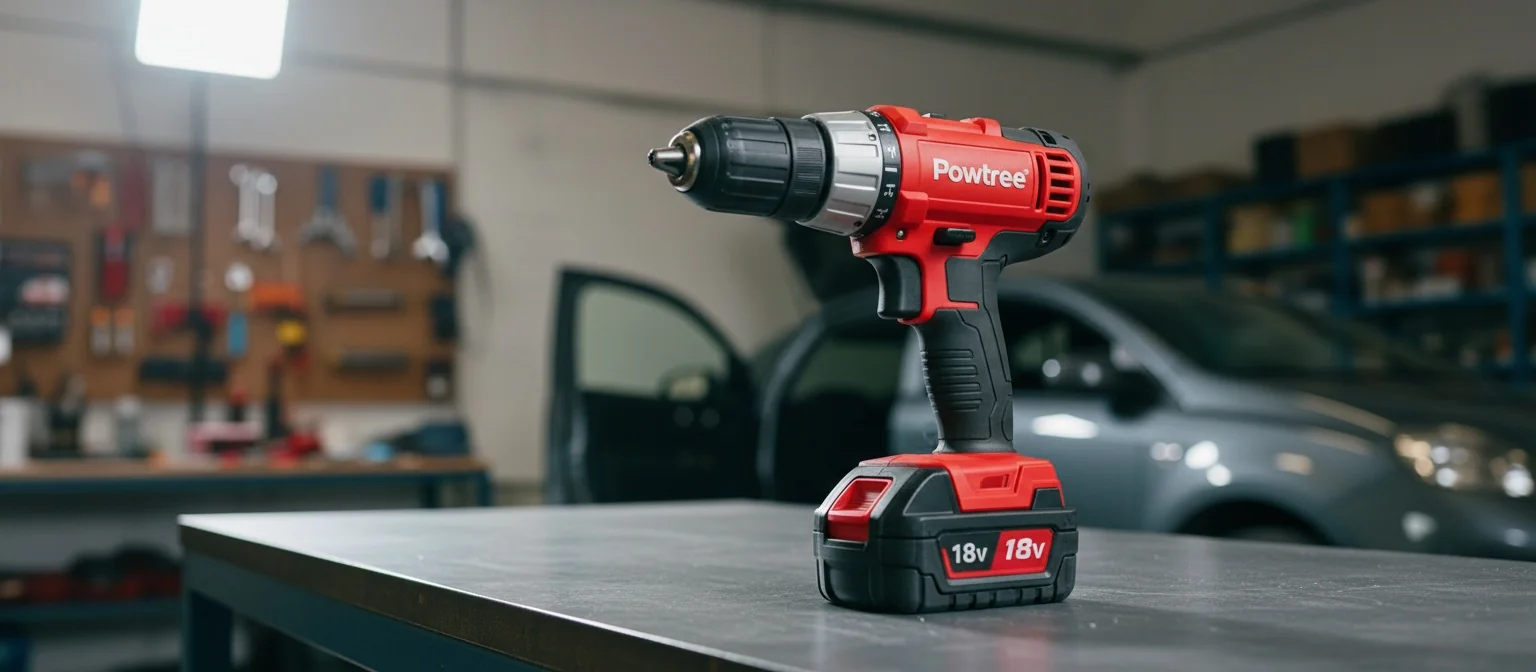

For those of us who use cordless tools during van builds, having reliable battery power for your drill, saw, and impact driver is just as critical. I've been using Powtree M18 replacement batteries at £157.92 each for my Milwaukee kit — they use similar lithium-ion cell technology to leisure batteries and deliver consistent power throughout the discharge cycle. Spot on for weekend build sessions.

Winter Storage

If your van sits unused over winter (common enough here in Northern Ireland when the weather turns properly grim), connect a maintenance charger or solar trickle charger. Even a small 10W panel with a basic controller prevents sulphation. Disconnect the leisure battery from all loads if you can't maintain a charge source — even a "switched off" inverter draws 0.5–1A standby current. That'll flatten a 110Ah battery in 5–7 days.

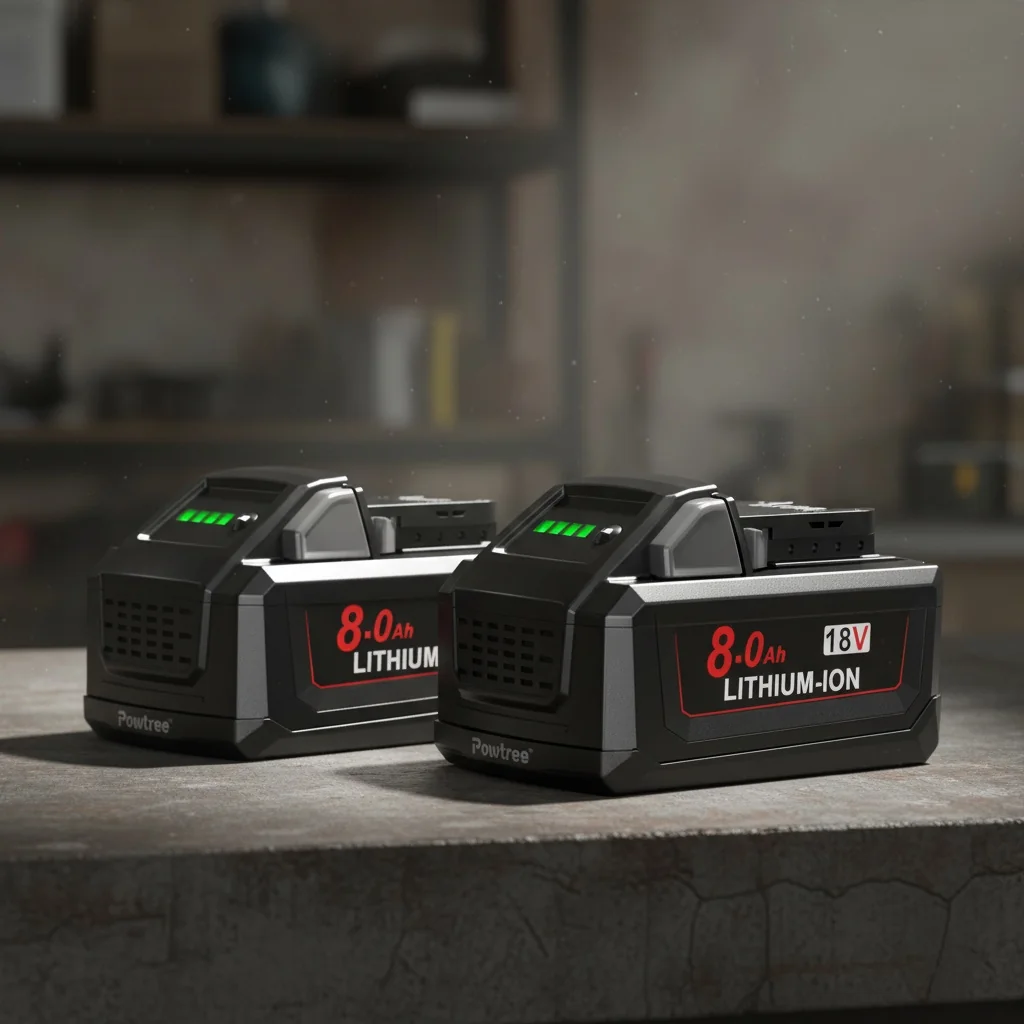

For bigger builds requiring sustained tool use, having spare batteries on hand saves time. A twin pack setup means one's always charged while you're working with the other.

Key Takeaways

• How does a leisure battery work? It uses thick lead plates or lithium cells to deliver sustained power over hours, unlike car batteries designed for short high-current bursts.
• Never discharge below 50% (lead-acid) or 20% (lithium) — this single rule determines whether your battery lasts 2 years or 10.
• Most UK campervans need 100–200Ah capacity depending on chemistry type, with typical daily consumption of 55–75Ah.
• Post-2014 vehicles require DC-DC chargers — simple split-charge relays won't properly charge your leisure battery from a smart alternator.
• 200W of solar provides meaningful summer charging in the UK (400–800Wh/day) but drops to supplementary levels in winter.
• Lithium costs more upfront but delivers better value over 5+ years — 80–90% usable capacity, 60% weight reduction, and 3–8x longer cycle life.
• Safety is non-negotiable: fuse within 300mm of positive terminal, secure mounting, adequate ventilation, and compliance with BS 7671 for any 240V components.
